Inductive Sensing Breakout Board
6,000৳
The CY8CKIT-148-COIL Inductive-Sensing Coil Breakout board compatible with CY8CKIT-148 PSoC™ 4700S Inductive Sensing Evaluation Kit.
Description
MagSense Inductive-Sensing Breakout Board

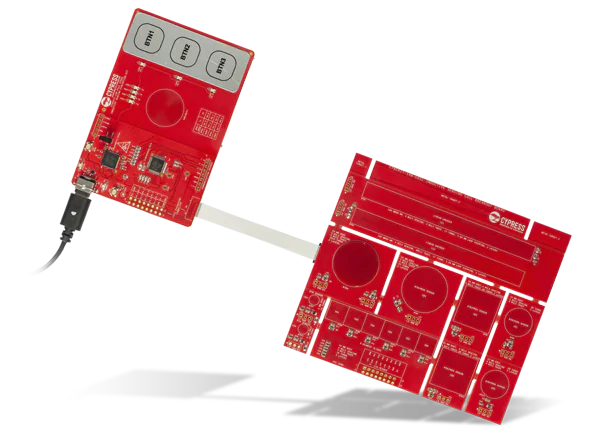

The CY8CKIT-148-COIL Inductive-Sensing Breakout board is designed as an easy-to-use reference design platform. This board is purpose-built to be compatible with the CY8CKIT-148 PSoC™ 4700S Inductive Sensing Evaluation Kit, where MagSense Inductive Sensing with various coils can be evaluated.

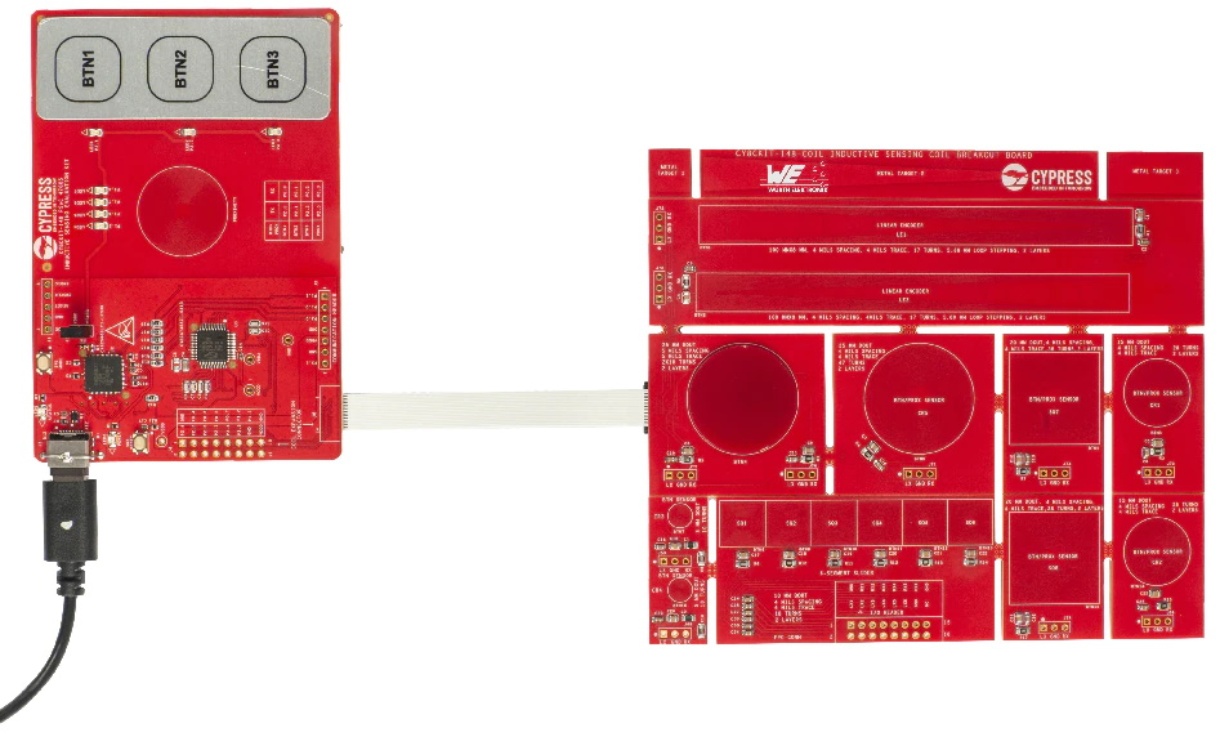

The Inductive Sensing Coil Breakout board features 16 total inductive sensing coils which demonstrate different performance characteristics. The kit supports the following sensor features:
- Proximity and touch detection using a single sensor
- Rotation angle detection with a rotary encoder
- Linear position encoding with two 100×8 linear encoder coils
- Horizontal gesture detection with a six-segment sensor array
This kit also includes three metal targets which may be broken away from the kit board and used with any of the sensors on the kit. A fourth metal target is included which works with the rotary encoder sensor.
- CY8CKIT-148-COIL Inductive Sensing Coil Breakout Board
- One FPC Cable
- Rotary Target
- Quick Start Guide (printed on the kit package)
To start designing and evaluating MagSense inductive sensing and this board, please download PSoC™ Creator. PSoC™ Creator is an Integrated Design Environment (IDE) that enables concurrent hardware and firmware editing, compiling and debugging of PSoC™ systems. Applications are created using schematic capture and over 150 pre-verified, production-ready peripheral Components.
The Board uses parts supplied by Würth Elektronik eiSos GmbH & Co. KG. This kit uses the following parts:
- WCAP-CSGP MLCCs 0805
- WE-PMI Power Multilayer Inductor
- WR-FPC 0.50 mm SMT ZIF Horizontal
- WR-FFC 0.50 mm Flat Flexible Cable Type 1
Würth Elektronik eiSos GmbH & Co. KG is a manufacturer of electronic and electromechanical components for the electronics industry. The company currently employs 8,300 staff and generated sales of 848 million euros in 2018. Würth Elektronik eiSos is one of the largest European manufacturers of passive components and is active in 50 countries.
