Inductive Sensing Evaluation Kit
14,000৳

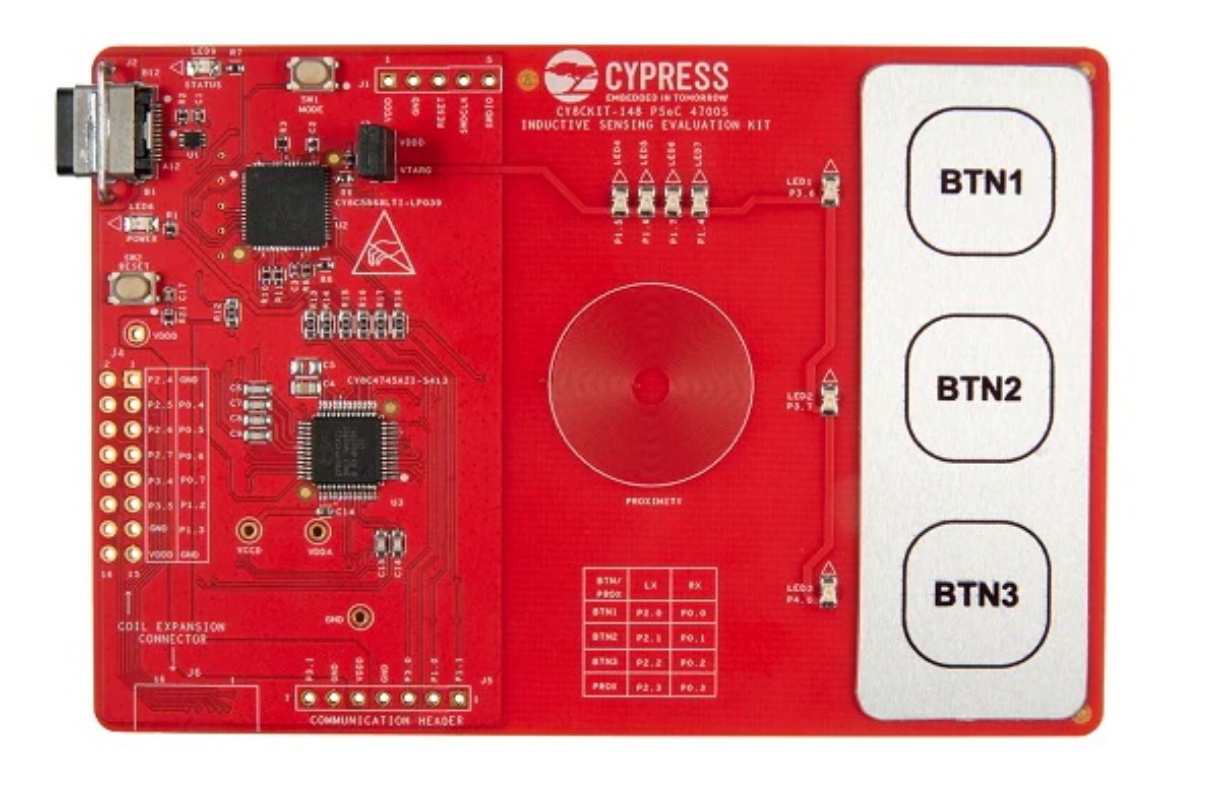

CY8CKIT-148 PSoC™ 4700S Inductive Sensing Evaluation Kit
Description
The CY8CKIT-148 PSoC™ 4700S Inductive Sensing Evaluation Kit is a low-cost hardware platform that enables design and debug of the PSoC™ 4700S MCU. This kit demonstrates buttons and a proximity sensor using Infineon’ inductive-sensing technology, MagSense. In addition, an FPC connector is provided to evaluate various interfaces, such as a rotary encoder.
Infineon Technologies PSoC™ 4700S Plus Inductive Sensing Evaluation Kit
Infineon Technologies PSoC™ 4700S Plus Inductive Sensing Evaluation Kit is a cost-effective hardware platform that enables designers to create and debug the automotive PSoC™ 4700S Plus MCU. The CY8CKIT4700SPLUS showcases Infineon’s innovative inductive-sensing technology, allowing users to experience the functionality of both buttons and proximity sensors.
Features
- Inductive sense buttons using metal over touch technology
- Inductive sense proximity sensor that supports metal target detection
- Arduino-compatible connectors for easy integration with other hardware platforms
- Shield2Go connector for added flexibility and expandability
- ModusToolbox™ support, a comprehensive suite of development tools and resources
- Code examples that demonstrate Sequential scanning and Parallel scanning techniques for greater efficiency in design
- Insensitivity to dirt, oil, and moisture, ensuring reliable operation under a variety of conditions
- Compatibility with both grounded and ungrounded (floating) metal, providing greater flexibility in design
- Intrinsically safe operation, which requires no electrical connection to the metal and eliminates the risk of electric shock
- Large detection range for proximity sensing of metallic objects, enabling accurate and efficient operation
Applications
- Touch buttons with metal overlay, ideal for use on door handles or trunk openers
- Touch buttons with a dual-sensing requirement, combining soft-touch and force-touch capabilities
- Rotary encoders for use in trackpad systems, volume dials, and other applications
- Force-sensing uses inductive sensing, making it ideal for use in touchscreens and touch button systems
- Gear shift detection using inductive sensors, providing reliable and accurate data for automotive applications
- Contactless throttle pedal applications enable safe and efficient operation of vehicles
Additional Resource
Board Features
Block Diagram
