nRF52840 DK with Dongle
12,500৳
Description
Bluetooth Low Energy, Bluetooth mesh, NFC, Thread and Zigbee development kit for the nRF52840 SoC

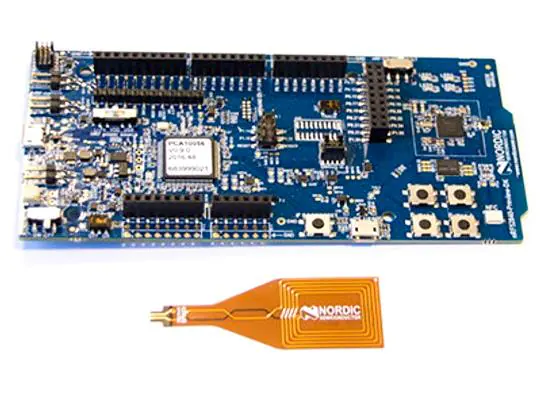

The nRF52840 DK with dongle is a versatile single-board development kit for Bluetooth Low Energy, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary applications on the nRF52840 SoC. It is the recommended Nordic development kit for Amazon Sidewalk. It also supports development on the nRF52811 SoC.
The nRF52840 DK with dongle can also be used for Matter over Thread where Thread is used for transport and Bluetooth LE for commissioning. Matter devices based on Thread are required to feature Bluetooth LE concurrently to enable adding new devices to a network.
It facilitates development by exploiting all features of the nRF52840 SoC. It includes an NFC antenna that quickly enables utilization of the NFC-A tag peripheral. All GPIOs are available via edge connectors and headers, and 4 buttons and 4 LEDs simplify input and output to and from the SoC. An on-board external memory is connected to the QSPI peripheral in the nRF52840 SoC.
It is Arduino Uno Revision 3 compatible, making it possible to mount 3rd-party shields with ease. It comes with an on-board SEGGER J-Link debugger allowing programming and debugging both the on-board SoC and external targets through the debug out header. It also interfaces directly with the Power Profiler Kit II.
The DK is typically powered with USB, but can be powered by a wide range of sources, within the supply range of 1.7 to 5.0 V. In addition to USB, it can be powered with an external source, but also includes a CR2032 battery holder and a Li-Po battery connector, for in-field testing. Current consumption can be measured by using the dedicated current measurement pins.
Hardware layout and schematics for the nRF52840 DK are available under Downloads.
Download nRF52840 DK product brief [PDF]
Download nRF52840 DK product brief Simplified Chinese [PDF]
nRF52840 Dongle nRF Connect for Desktop hardware
Designed for nRF Connect for Desktop

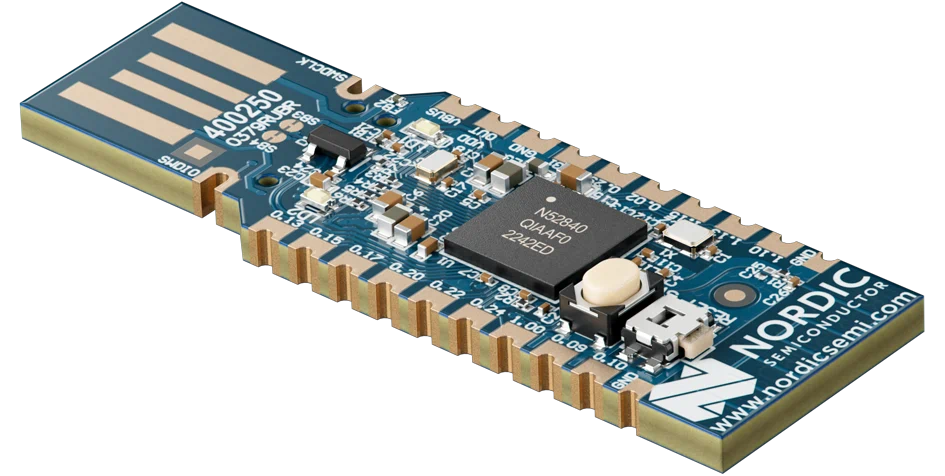

The nRF52840 Dongle is a small, low-cost USB dongle that supports Bluetooth 5.4, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary protocols. The Dongle is the perfect target hardware for use with nRF Connect for Desktop as it is low-cost but still support all the short range wireless standards used with Nordic devices. The dongle has been designed to be used as a wireless HW device together with nRF Connect for Desktop. For other use cases please do note that there is no debug support on the Dongle, only support for programming the device and communicating through USB.
It is supported by most of the nRF Connect for Desktop apps and will automatically be programmed if needed. In addition custom applications can be compiled and downloaded to the Dongle. It has a user programmable RGB LED, a green LED, a user programmable button as well as 15 GPIO accessible from castellated solder points along the edge. Example applications are available in the nRF5 SDK under the board name PCA10059.
The nRF52840 Dongle is supported by nRF Connect for Desktop as well as programming through nRFUtil.
The box includes an nRF52840 Dongle.
Download nRF52840 Dongle product brief [PDF]
Download nRF52840 Dongle product brief Simplified Chinese [PDF]
