Particle Argon Kit

9,000৳

Categories: , , ,

Description

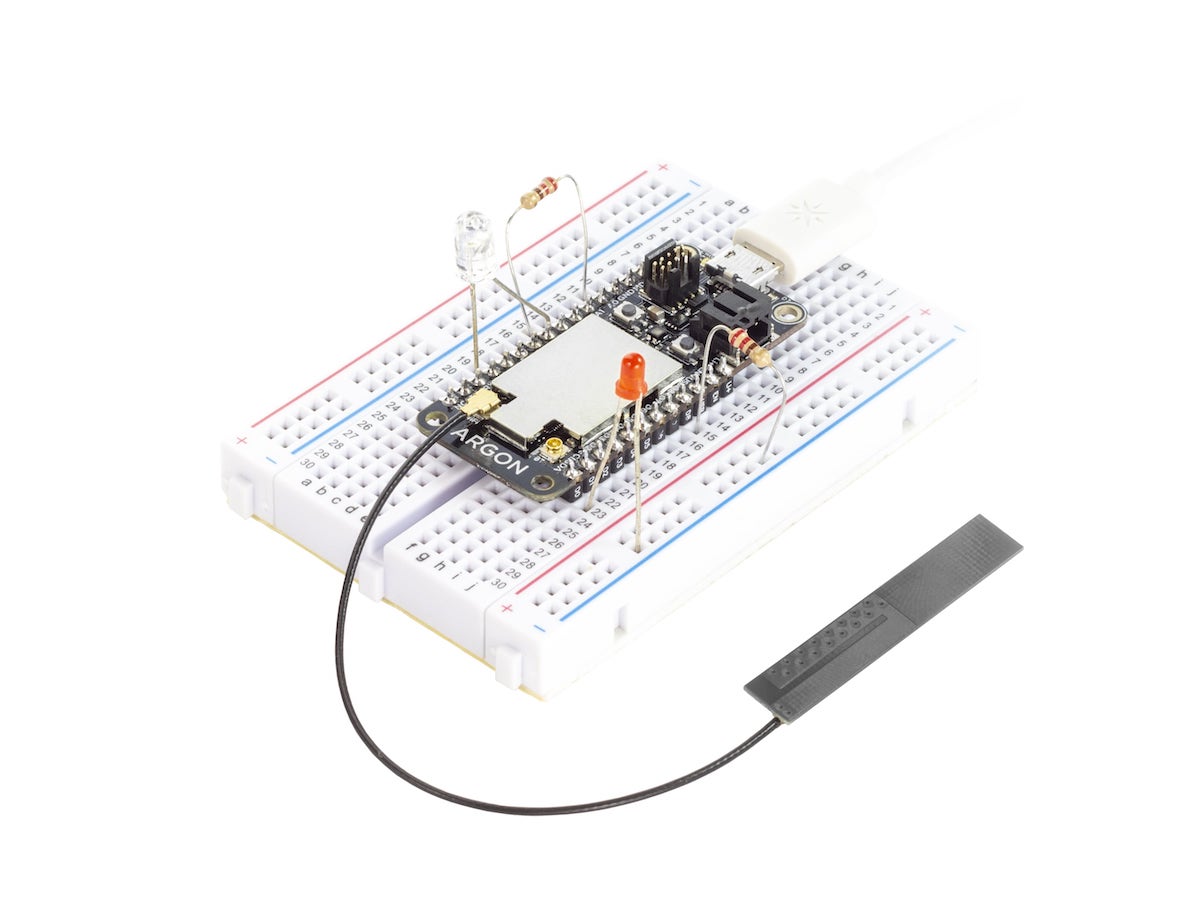

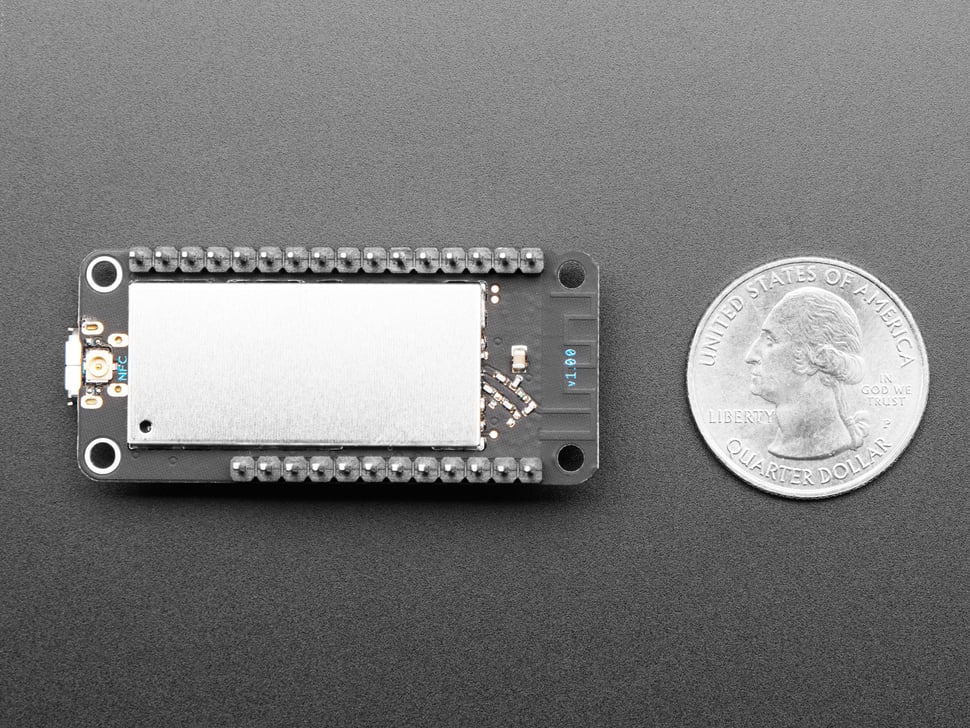

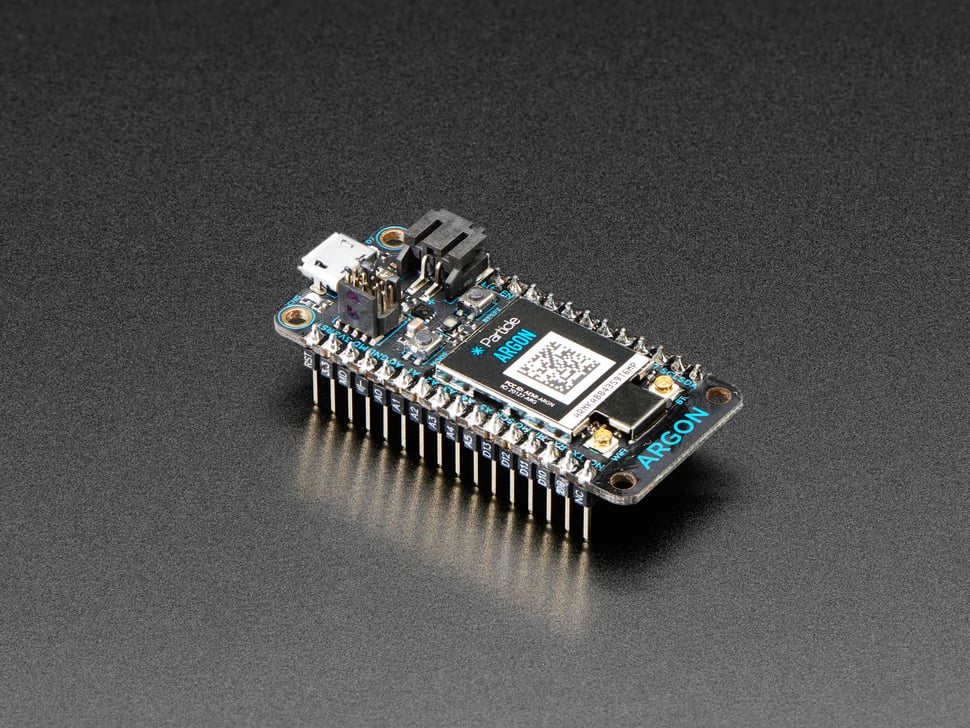

The Particle Argon is a powerful Wi-Fi development kit that you can use on Wi-Fi networks.

Equipped with the Nordic nRF52840 and Espressif ESP32 processors, the Argon has built-in battery charging circuitry which makes it easier to connect a Li-Po battery and 20 mixed signal GPIOs to interface with sensors, actuators, and other electronics.

Technical Details

Specs:

  • Espressif ESP32-D0WD 2.4G Wi-Fi coprocessor
    • On-board 4MB flash for ESP32
    • 802.11 b/g/n support
    • 802.11 n (2.4 GHz), up to 150 Mbps
  • Nordic Semiconductor nRF52840 SoC
    • ARM Cortex-M4F 32-bit processor @ 64MHz
    • 1MB flash, 256KB RAM
    • IEEE 802.15.4-2006: 250 Kbps
    • Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps
    • Supports DSP instructions, HW accelerated Floating Point Unit (FPU) calculations
    • ARM TrustZone CryptoCell-310 Cryptographic and security module
    • Up to +8 dBm TX power (down to -20 dBm in 4 dB steps)
    • NFC-A tag
  • On-board additional 2MB SPI flash
  • 20 mixed signal GPIO (6 x Analog, 8 x PWM), UART, I2C, SPI
  • Micro USB 2.0 full speed (12 Mbps)
  • Integrated Li-Po charging and battery connector
  • JTAG (SWD) Connector
  • RGB status LED
  • Reset and Mode buttons
  • On-board 2.4GHz PCB antenna for Thread/BLE (does not support Wi-Fi)
  • Two U.FL connectors for external antennas (one for Thread/BLE, another for Wi-Fi)
  • Meets the Feather specification in dimensions and pinout
  • FCC, CE and IC certified
  • RoHS compliant (lead-free)

Learn more:

Resources:
