U50 Data Center Accelerator Card
400,000৳
AMD/Xilinx Alveo U50 Data Center Accelerator Card supports PCI Express® (PCIe) Gen3 x16 or dual Gen4 x8
Description

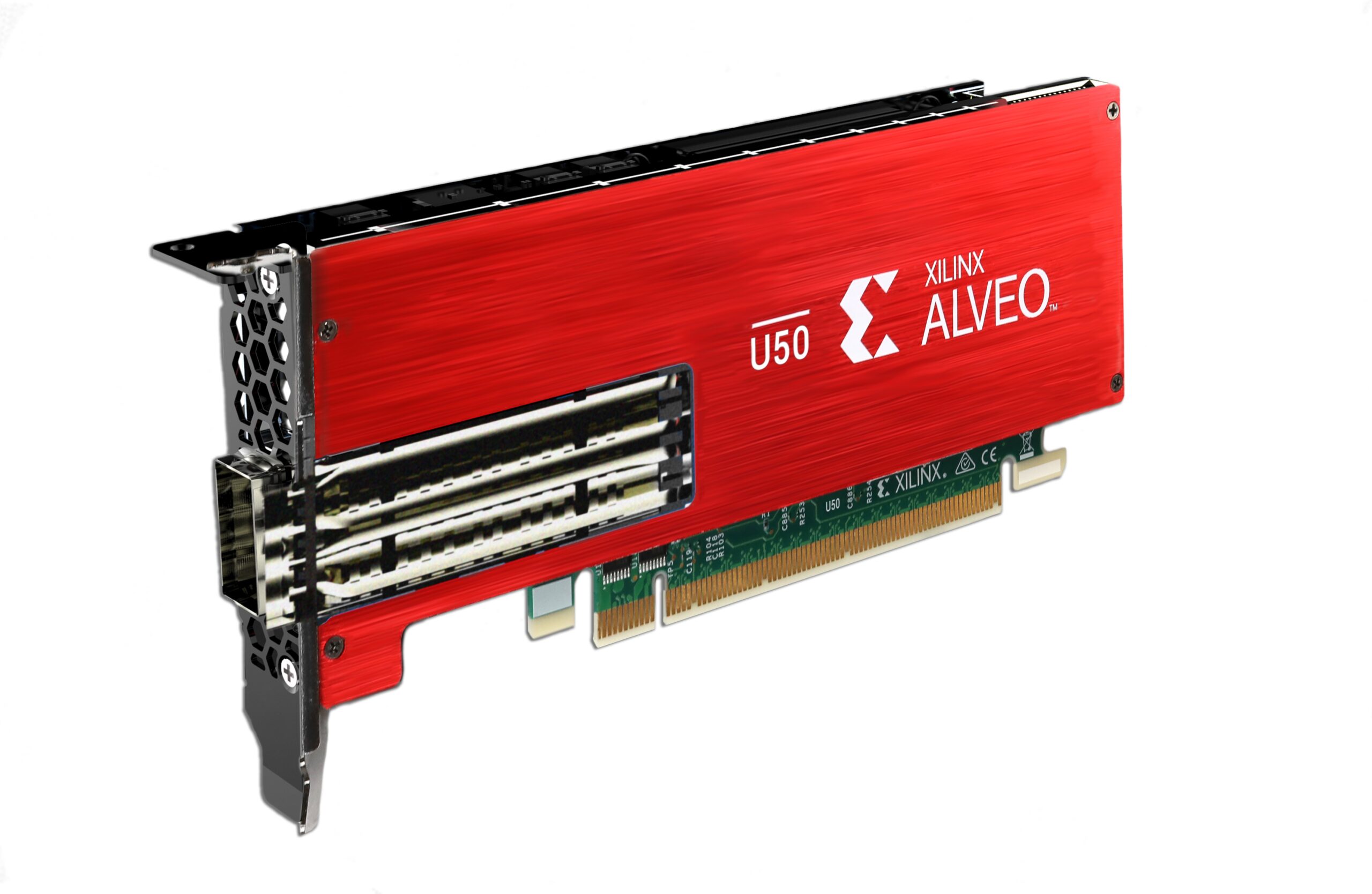

AMD / Xilinx Alveo™ U50 Data Center Accelerator Card
AMD/Xilinx Alveo U50 Data Center Accelerator Card is a single-slot, low profile form factor passively-cooled card operating up to a 75W maximum power limit. The U50 supports PCI Express® (PCIe) Gen3 x16 or dual Gen4 x8, is equipped with 8GB of high-bandwidth memory (HBM2), and Ethernet networking capability.
The Card provides optimized acceleration for workloads in financial computing, machine learning, computational storage, and data search and analytics. The U50 Data Center Card is built on AMD / Xilinx UltraScale+™ architecture and packaged in an efficient, 75W, low-profile form factor. The U50 includes 8GB HBM2, 100GbE networking, and PCI Express 4.0. These features make the U50 ideal for deployment in any server. The U50 Card has a single QSFP28 connector capable of 4x25G.
The Accelerator Cards are adaptable to changing acceleration requirements and algorithm standards, capable of accelerating any workload without changing hardware and reducing the overall cost of ownership.
Features
- Performance
- Faster application performance with 8GB HBM memory and PCIe Gen4 interconnect
- Low latency network capability through 100G networking with support for 4x 10GbE, 4x 25GbE, or 1x 40GbE or 1x 100GbE
- Accessible – built for scale-out architectures for deployment solutions on the cloud or on-premises interchangeably
- Adaptable
- Accelerates compute, network, storage workloads
- Maximized application performance as workloads and algorithms evolve through reconfigurable fabric – unlike fixed-architecture alternatives
Specifications
- UltraScale+ architecture
- Half-height, half length, single slot low-profile form factor
- 872,000 Look up tables
- HBM2 memory of 8GB
- HBM2 bandwidth of 316GB/s1
- 1 x QSFP28 (100GbE) network interface
- IEEE 1588 clock precision
- PCIe Gen3 x 16, dual PCIe; Gen4 x 8, CCIX PCI express
- Passive thermal solution
- 75W Power (TDP)
Applications
- Machine learning
- Data analytics
- Video transcoding
- Video and image processing
- Genomics
- Security
- Financial computing
Overview
Additional Resources of U50 Data Center Accelerator Card
Production Block Diagram
| Card Component | Alveo U50/U50LV |
|---|---|
| FPGA | UltraScale+ XCU50 FPGA |
| HBM | 8 GB – two 4 gigabyte (GB) HBM memory stacks |
| Split into 32 256 MB channels | |
| Network Interface | 1x QSFP28 |
| Supporting 100 GbE, 40 GbE, or 4×10/25 GbE | |
| PCIe | 16-lane PCI Express |
| PCIe Integrated Endpoint block connectivity | |
| Gen1, 2, or 3 up to x16, Gen4 x8 | |
| Single or dual Gen4 x8 | |
| I2C Bus | ✓ |
| Status LEDs | ✓ |
| Power Management | Power management with system management bus (SMBus) voltage, current, and temperature monitoring |
| Electrical Design Power | 75W PCIe slot functional with PCIe slot power only |
| Configuration Options | 1 gigabit (Gb) Quad Serial Peripheral Interface (SPI) flash memory |
| UltraScale+ device configurable over USB/JTAG and Quad SPI configuration flash memory |
