IoT Sense Expansion Kit (CY8CKIT-028-SENSE)
Description

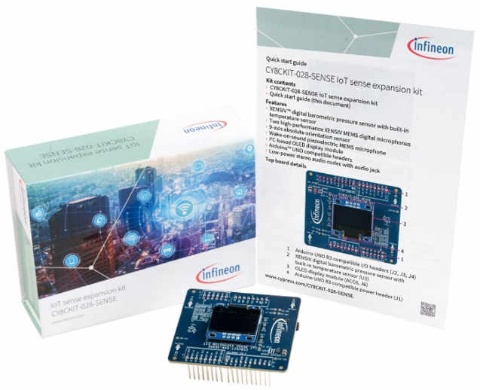

Infineon Technologies IoT Sense Expansion Kit (CY8CKIT-028-SENSE) is a low-cost, Arduino™ UNO compatible shield board that can be used to easily interface various sensors with the PSoC™ 6 MCU platform, specifically targeted for audio and machine learning applications. The Kit includes two PDM microphones and one analog microphone. The Expansion Kit also includes multiple sensors to generate input data to feed ML algorithms, such as a 9-axis absolute orientation sensor and pressure and temperature sensor.
The Infineon Technologies Expansion Kit can plug into any Arduino UNO compatible development board from Infineon. The Expansion Kit is specifically designed to be used with the CY8CKIT-062S2-43012 or CY8CKIT-064B0S2-4343W Development Kits. The
CY8CKIT-028-SENSE does not include a programmable device on the board, but it does feature a configurable audio codec that uses I2C as the configuration interface.
- Digital XENSIV™ MEMS Microphone(s)
- Digital XENSIV Barometric Air Pressure Sensor
- Bosch 9-axis Absolute Orientation Sensor
- Piezo MEMS Analog Microphone
- Audio Codec and headset jack
- OLED Display Module
Parametrics
| Parametrics | CY8CKIT-028-SENSE |
|---|---|
| Applications | Refrigerator |
| Bluetooth Standard | N/A |
| Board Type | Shield |
| CapSense | No |
| Core | N/A |
| External memory | None |
| Family | N/A |
| Features | 3.5-mm stereo audio jack socket |
| GPIOs/Shield Compatibility | Arduino Uno |
| Hardware Compatibility | CY8CKIT-062S2-43012,CY8CKIT-064B0S2-4343W |
| Input Type | DC |
| Product Name | CY8CKIT-028-SENSE |
| Programmer/Debugger | None |
| Qualification | Consumer |
| Sensors | Analog MIC,Audio codec,,Nine-axis IMU,OLED display,XENSIV MEMS Microphone,XENSIV Barometric air pressure |
| Software Support | ModusToolbox |
| Target Application | Home entertainment ; Smart Home ; Home Appliances |
| WiFi Standard | N/A |
Features
- DPS310 XENSIV™ Digital Barometric Air Pressure and Temperature Sensor
- 300hPa to 1200hPa operation range
- 0.002hPa sensor precision
- ±0.06hPa relative accuracy
- 0.5Pa/K pressure-temperature sensitivity
- ±0.5°C temperature accuracy
- 2x IM69D130 XENSIV MEMS Digital Microphones
- 105dB dynamic range
- High 130dBSPL output linearity
- 6dBa signal-to-noise ratio
- Less than 1% distortion up to 128dBSPL (130dBSPL AOP)
- Digital (PDM) interface with 6μs group delay at 1kHz
- Tight sensitivity (-36dB ±1dB) and phase (±2°) tolerance
- 28Hz low-frequency roll-off
Board Layout
Block Diagram
- CY8CKIT-028-SENSE IoT Sense Expansion Kit Quick Start Guide EN
06_00 | 2023-06-12 | pdf | 2.2 MB
- CY8CKIT-028-SENSE IoT Sense Expansion Kit User Guide EN
04_00 | 2023-06-07 | pdf | 1.5 MB
- CY8CKIT-028-SENSE IoT Sense Expansion Kit Release Notes EN
02_00 | 2023-05-25 | pdf | 104 KB
