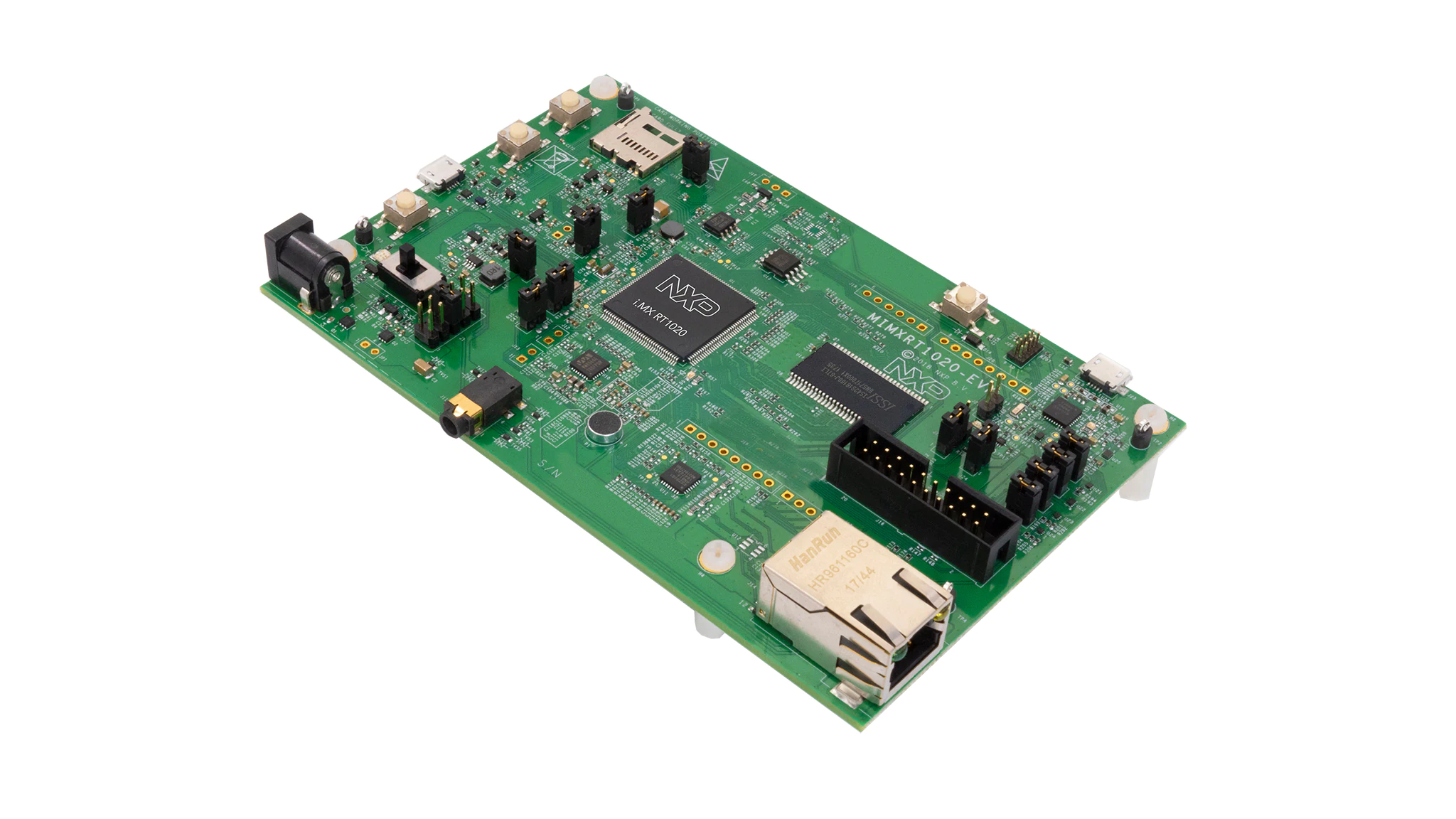

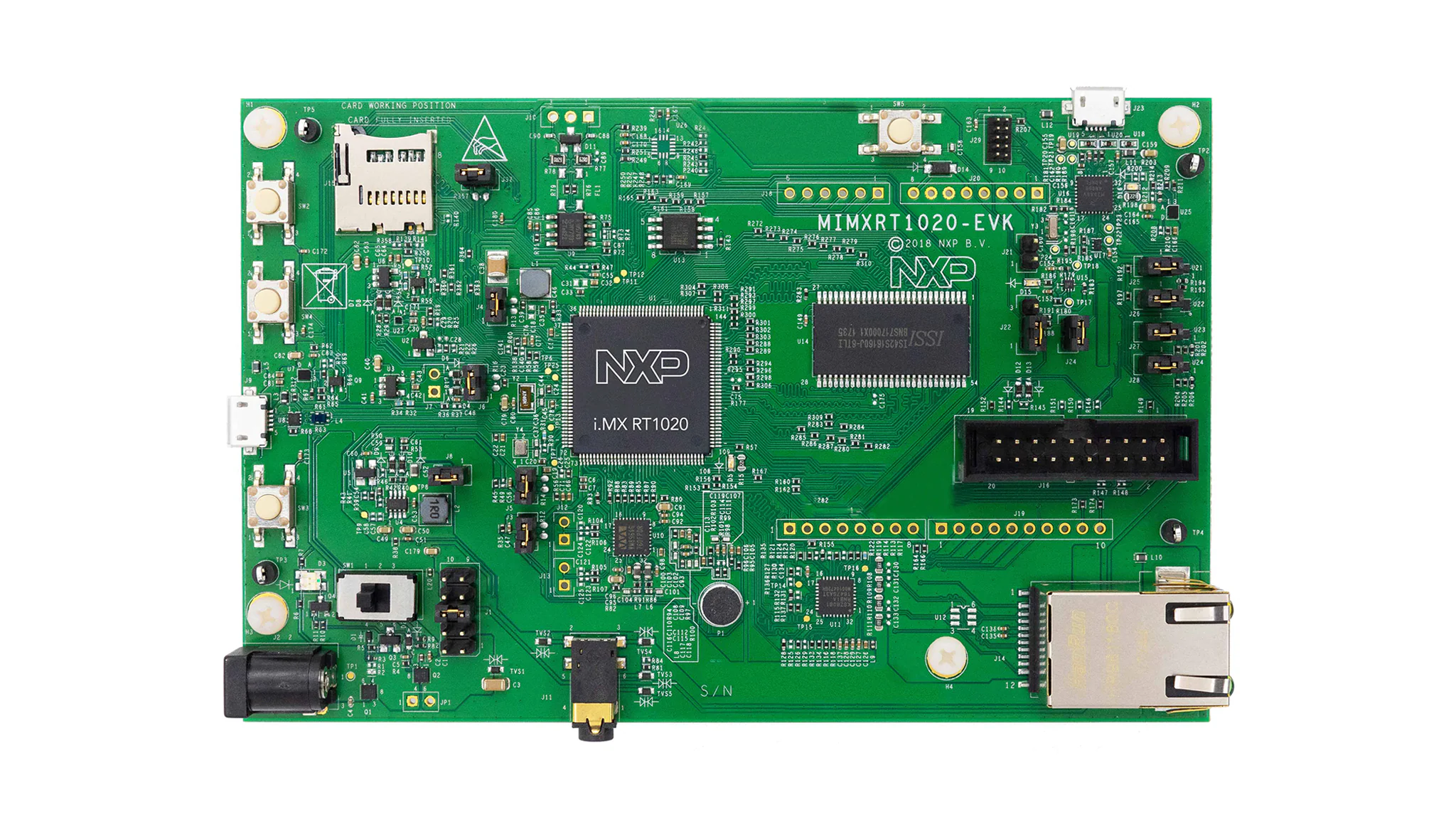

i.MX RT1020 Evaluation Kit
14,000৳
Description
NXP i.MX RT1020 evaluation kit provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.
The i.MX RT1020 Crossover MCUs are based on the Arm® Cortex®-M7 core for real-time microcontroller (MCU) performance and high integration for industrial and IoT applications.
The i.MX RT1020 Arm® Cortex®-M7 operates at up to 500 MHz with 256 KB on-chip RAM that can be configured as Tightly-Coupled Memory or general purpose. This real-time MCU family offers various memory interfaces and a wide range of connectivity interfaces including UART, SPI, I²C, USB, 10/100M Ethernet and CAN. 144 LQFP and 100 LQFP packages for low-cost PCB designs.
The i.MX RT1020 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.
Details of i.MX RT1020 evaluation kit
Supported Devices
Processors and Microcontrollers
i.MX RT1020 Crossover MCUs
- i.MX-RT1020: i.MX RT1020: Crossover MCU with Arm® Cortex®-M7
Power Management
Load Switches
- NX5P3090UK: USB PD and Type-C Current-Limited Power Switch
Features
Processor
- MIMXRT1021DAG5A processor
Memory
- 256 Mb SDRAM memory
- 64 Mb QSPI Flash
Audio
- Audio codec
- 4-pole audio headphone jack
- External speaker connection
- Microphone
Connectivity
- Micro USB host and OTG connectors
- Ethernet (10/100T) connector
- CAN transceivers
- Arduino® interface
- TF socket for SD card
Tools and OS Support
- MCUXpresso SDK with optional FreeRTOS support
- MCUXpresso IDE
- MCUXpresso Config Tools
- Zephyr® OS
