PSoC 62S2 Wi-Fi BT Pioneer Kit
24,000৳
Description
PSoC 62S2 Wi-Fi BT Pioneer Kit (CY8CKIT-062S2-43012)
PSoC 62S2 Wi-Fi BT Pioneer Kit (CY8CKIT-062S2-43012) is a hardware evaluation platform for rapid prototyping of applications based on the PSoC™ 62xA, PSoC™ 62×8, PSoC™ 61xA, PSoC™ 61×8 MCU product families. The kit also includes a wireless module based on the AIROC™ CYW43012 combo device to develop cloud connected IoT applications including Matter over Wi-Fi applications.
Summary of Features
- Featuring the PSoC™ 62xA MCU – Ultra low power, high performance MCU based on the dual core CPU (Arm® Cortex®-M4 and Arm® Cortex®-M0+), 2048 KB of on-chip Flash, 1024 KB of SRAM, Quad-SPI external memory interface, built-in hardware and software security features, rich analog, digital, and communication peripherals
- Base Features – PSoC™ 62xA MCU (OPN: CY8C624ABZI-S2D44), AIROC™ CYW43012 device supporting Dual-band Wi-Fi 4 (802.11n) + Bluetooth® 5.2 combo, Integrated Programmer / Debugger (KitProg3), User LEDs(2), RGB LED(1), Push buttons(2), Potentiometer, KHz/MHz crystal
- Additional Features – CAPSENSE™ slider(5-segment), CAPSENSE™ buttons(2), Infineon Quad SPI NOR flash (512-Mbit), Infineon Quad SPI FRAM (4-Mbit), USB-FS Device I/F (PSoC™ 6), USB-FS Host I/F (PSoC™ 6), microSD Card Slot
- Hardware Expansion Features – Arduino Uno R3, Extended IO headers, Program/Debug Header
- Software Support – ModusToolbox™ software
- Board Support Package – TARGET_CY8CKIT-062S2-43012
- Code Examples available at Infineon’s GitHub Repository
- Applicable Product families – PSoC™ 62xA, PSoC™ 62×8, PSoC™ 61xA, PSoC™ 61×8

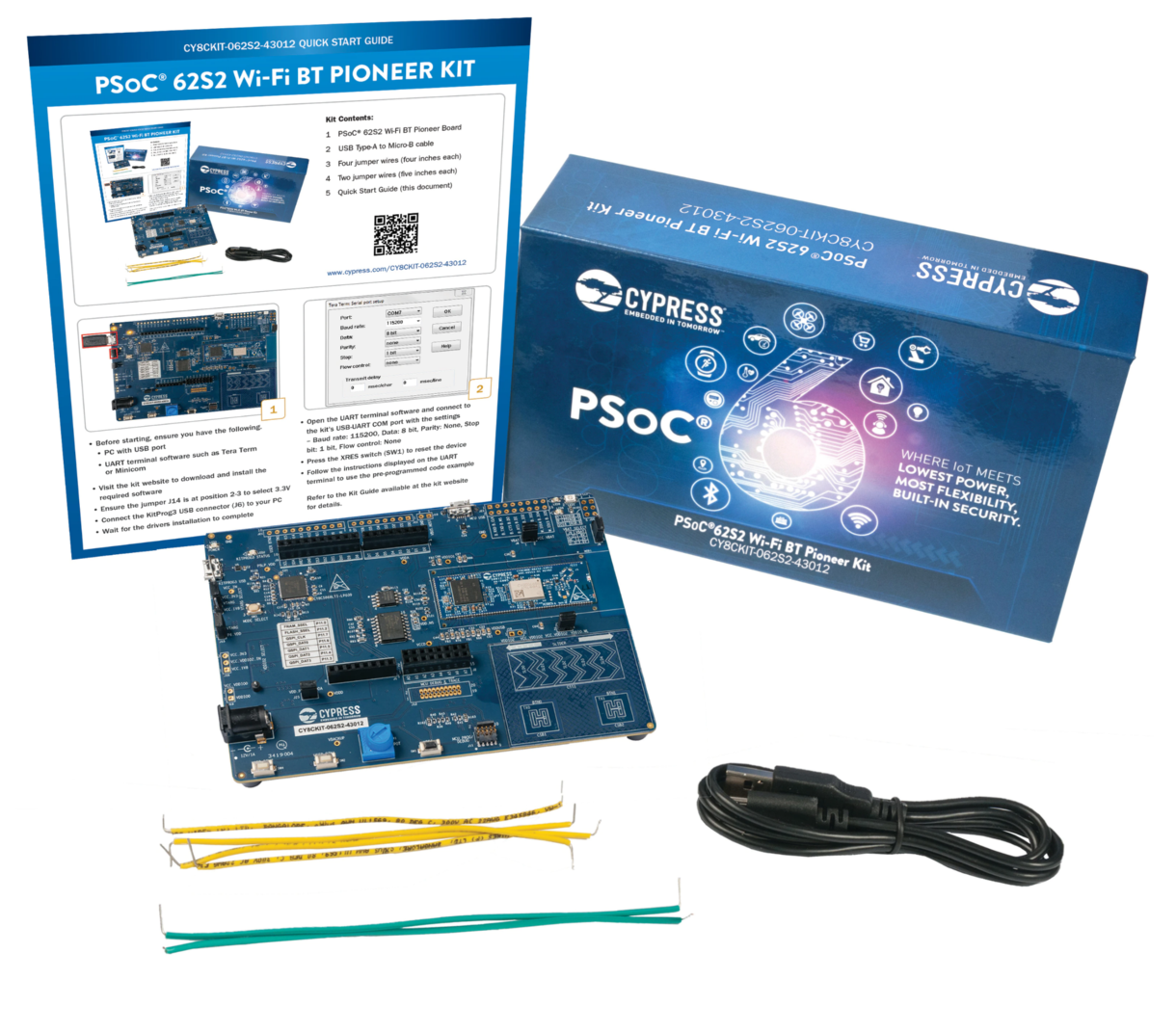

Kit Contents – PSoC® 62S2 Wi-Fi BT Pioneer Board, USB Type-A to Micro-B cable, Jumper wires, Quick Start Guide
Parametrics
| Parametrics | CY8CKIT-062S2-43012 |
|---|---|
| Applications | Refrigerator |
| Bluetooth Standard | BLE 5.2 |
| Board Type | Evaluation Kit |
| CAPSENSE™ | Buttons,Slider |
| Connectivity | WiFi/Bluetooth |
| Core | ARM Cortex-M4 |
| External memory | 512-Mbit Quad SPI NOR Flash, 4-Mbit Quad SPI F-RAM,microSD card interface. |
| Family | PSOC™ 62×8 Microcontroller,PSOC™ 62xA Microcontroller,PSOC™ 61×8 Microcontroller,PSOC™ 61xA Microcontroller,AIROC™ CYW43012 Wi-Fi+Bluetooth® Combo |
| Features | User buttons,LEDs,Potentiometer,MCU Device USB,MiniProg4 compitible header |
| GPIOs/Shield Compatibility | Arduino Uno |
| Hardware Compatibility | CY8CKIT-022; CY8CKIT-028-SENSE |
| Input Type | DC |
| Programmer/Debugger | Onboard KitProg |
| Qualification | Industrial ; Consumer |
| Sensors | None |
| Software Ecosystem | ModusToolbox™ Software |
| Software Support | ModusToolbox |
| Target Application | Smart home, Home appliances, Healthcare and lifestyle, Consumer electronics, Wearables |
| WiFi Standard | Wi-Fi 4 (802.11n) |
