LCR Meter (Tenma 72-10465)
35,000৳
Description
The Tenma 72-10465 is a precision LCR meter designed for accurate measurement of inductance (L), capacitance (C), and resistance (R), making it an essential tool for electronic component testing, quality control, research, and educational labs. With a blend of advanced functionality, user-friendly features, and rugged construction, the 72-10465 offers professional-grade performance at an economical price—ideal for engineers, technicians, and electronics enthusiasts alike.
This high-quality handheld LCR meter supports both auto and manual ranging, allowing users to test components with ease and flexibility. It features a large dual-line backlit LCD display, which clearly shows primary and secondary measurement parameters simultaneously. With measurement frequencies ranging from 100Hz to 100kHz, the Tenma 72-10465 provides accurate and consistent readings for a wide variety of components, including surface-mount devices (SMD), which can be tested easily using the included SMD tweezers.
The meter supports multiple test modes, including series and parallel measurement, and can measure impedance, phase angle, Q factor, D factor, and ESR (equivalent series resistance), offering deep insight into component behavior. It automatically selects the optimal measurement configuration based on the type of component, ensuring ease of use even for less experienced users.
In addition to its strong technical capabilities, the 72-10465 is built for convenience and durability. Its compact, ergonomic design makes it ideal for bench or field use, and the intuitive interface ensures fast operation in busy environments. Powered by standard batteries or an external adapter, it is ready for mobile use in repair shops, production lines, or academic settings.
Key accessories include test leads, alligator clips, and a carrying case, ensuring you have everything needed to start testing right out of the box. The auto power-off feature and low-battery indicator enhance power efficiency and reliability during extended use.
Whether you’re selecting components, diagnosing circuit issues, or conducting R&D measurements, the Tenma 72-10465 LCR meter delivers the accuracy, versatility, and durability you need. It’s a cost-effective, feature-rich instrument that simplifies complex measurements without compromising on quality.
Add the Tenma 72-10465 to your toolkit today and experience dependable, high-precision component testing backed by the trusted Tenma name.
Product Overview

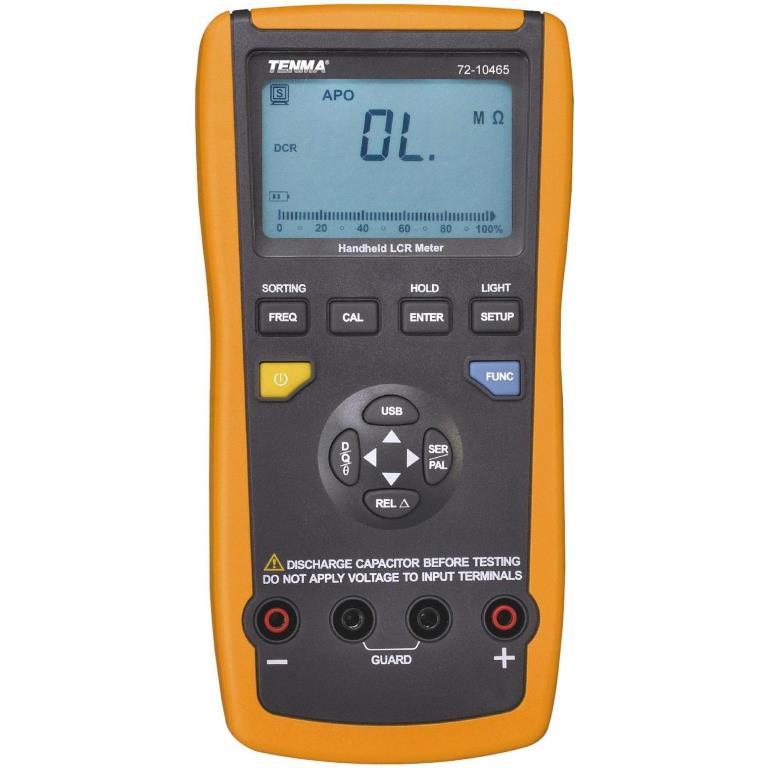

The 72-10465 from Tenma is a LCR meter in orange and grey colour. It features an easy to read dual LCD (40mm x 63mm) display measurement of 19999/1999 (main/auxiliary). It also has series and parallel measurement modes which can be used to select quality factor, loss factor, phase location angle and equivalent resistance of measure articles. Intelligent detection and five different test frequencies enable accurate readings for all sizes of capacitors and inductors. The user can also access the stored data on a PC with the included USB connection and interface software. The compact size and case make this unit far more portable than a benchtop meter.
- Measurement of L, C & R range from 20mH to 2000H, 200pF to 20mF & 20 ohm to 200Mohm
- Measurement frequency of 100Hz/120Hz/1KHz/10KHz/100KHz
- 0.6Vrms measurement voltage, 120 ohm output impedance & 0.5% basic precision
- Low battery indication ≤6.8V, automatic shutdown
- LCR automatic identification/manual measurement
- Measurement of DCR DC resistance
- Calibration compensation of open circuit/short-circuit
- Relative mode and tolerance sorting
- Product size of 96mm x 193mm x 47mm, product net weight is 374g
- 9V battery (6F22) or USB powered
- 12 month limited warranty *view Terms & Conditions for details
Contents
72-10465 LCR meter, Battery, SMD test clamp, USB interface cable, PC software CD, Multi-purpose socket, Short circuit splice.
