PSoC6 BLE Pioneer Kit

The PSoC6 BLE Pioneer Kit (CY8CKIT-062-BLE) hardware platform enables design and debug of the PSoC™ 63 Line. The PSoC™ 6-BLE Pioneer Kit features a single- or dual-core MCU, with an Arm Cortex-M4 and Arm Cortex-M0+, 1MB of Flash, 288KB of SRAM, 78 GPIO, 7 programmable analog blocks, 56 programmable digital blocks, Bluetooth Low Energy, a serial memory interface, a PDM-PCM digital microphone interface, and industry-leading capacitive-sensing with CAPSENSE™. The PSoC™ 6-BLE Pioneer Kit also comes with an E-ink display shield board. This shield board contains an ultra-low-power 2.7″ E-ink display, a thermistor, a 6-axis motion sensor, and a digital microphone.

ModusToolbox™ software provides support for design and development of the PSoC6 BLE Pioneer Kit. To find out more, please visit the ModusToolbox™ page. For code examples, please visit the Infineon GitHub Repository or the New Application Wizard in ModusToolbox™. This kit is shipped with KitProg2 installed. The ModusToolbox™ software requires KitProg3. Before using the kit with ModusToolbox™, ensure that the kit is upgraded to KitProg3. The tool and instructions are available in the Firmware Loader GitHub repository.

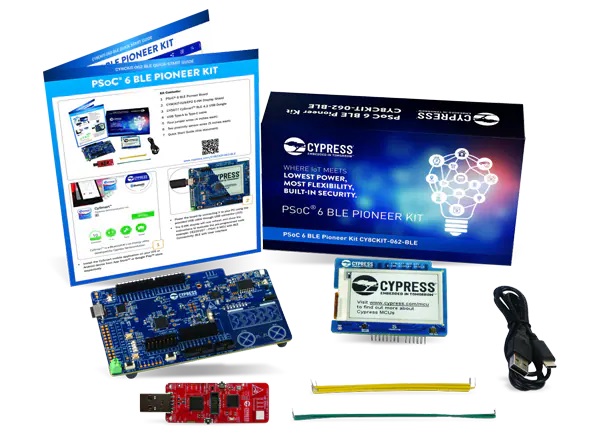

The CY8CKIT-062-BLE package has the following contents:

• PSoC 6 BLE Pioneer Board
• CY8CKIT-028-EPD E-INK Display Shield
• CY5677 CySmart BLE 4.2 USB Dongle
• USB Type-A to Type-C cable
• Four jumper wires
• Two proximity sensor wires
• Quick Start Guide
