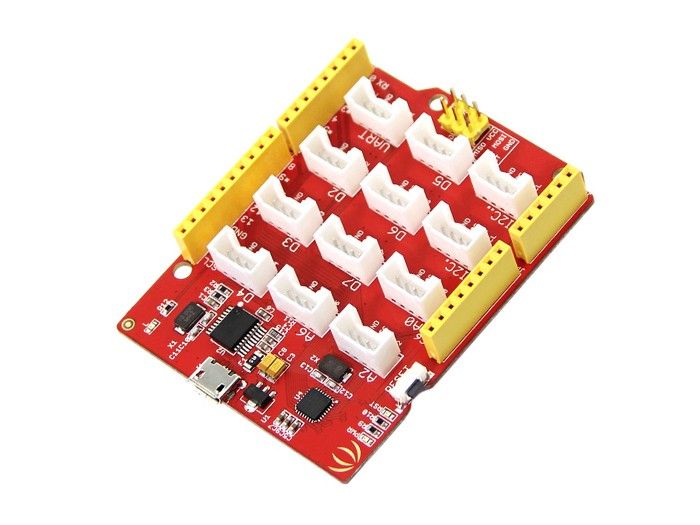

Seeedstudio Lotus

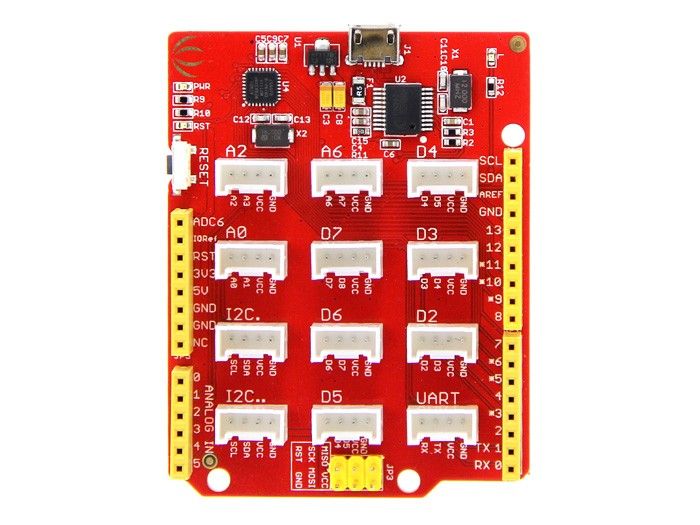

Seeeduino Lotus with Grove Interface - Image 2

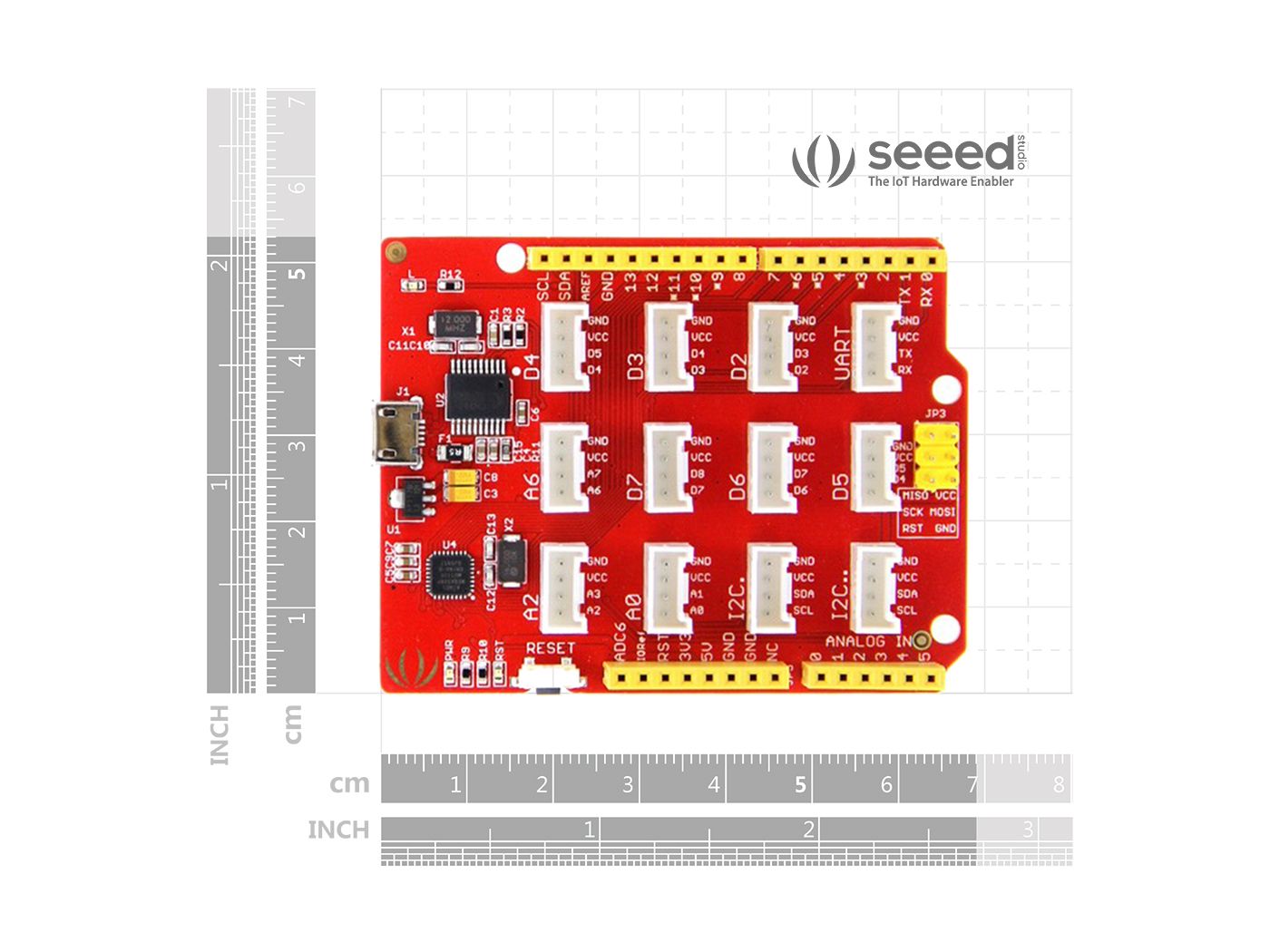

Seeeduino Lotus with Grove Interface - Image 3

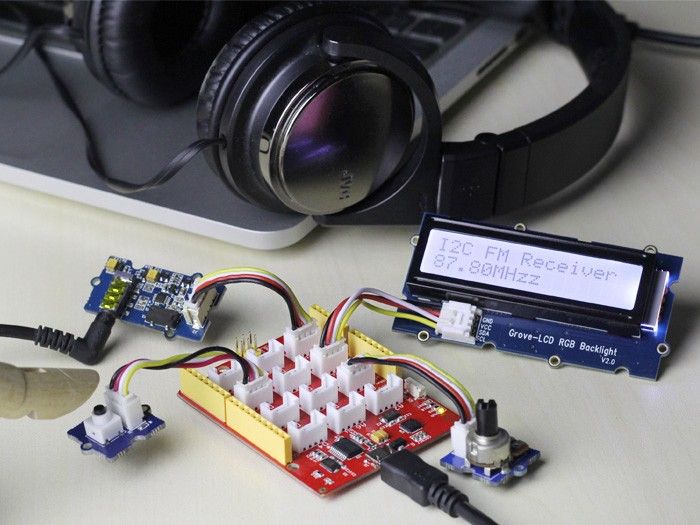

Seeeduino Lotus with Grove Interface - Image 4

Seeeduino Lotus with Grove Interface

3,500৳

Seeeduino Lotus is an ATmega328 Microcontroller development board. Arduino UNO Compatible On-board Grove connector Micro USB programming port.

Categories: , , , , , Tags: , ,

Description

Seeeduino Lotus with Grove Interface is an ATmega328 Microcontroller development board. It is a combination of Seeeduino and Base Shield. It uses Atmel ATMEGA328P-MU and CH340. ATMEGA328P-MU is a high performance, low power 8-Bit AVR Microcontroller. CH340 is an USB bus converter chip that can realize an USB to serial interface. Seeeduino Lotus has 14 digital input/output (6 of which can output PWM) and 7 analog input/output, a micro USB connection, an ICSP header, 12 Grove connections, a reset button.

SPECIFICATION of Seeeduino Lotus with Grove Interface

  • Microcontroller: ATmega328P-MU
  • Operating Voltage: 5V
  • Digital I/O Pins: 14
  • PWM Channels: 6
  • Analog Input Channels: 7
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (ATmega328P-MU)
  • RAM: 2 KB (ATmega328P-MU)
  • EEPROM: 1 KB (ATmega328P-MU)
  • Clock Speed: 16 MHz

Technical details

Dimensions 115mm x75mm x25mm
Weight G.W 42g
Battery Exclude

Part List

Seeeduino Lotus 1
