Ultra96-V2 FPGA Board
60,000৳
An Arm-based, Xilinx Zynq UltraScale+ MPSoC FPGA dev board.
Description
About Ultra96-V2

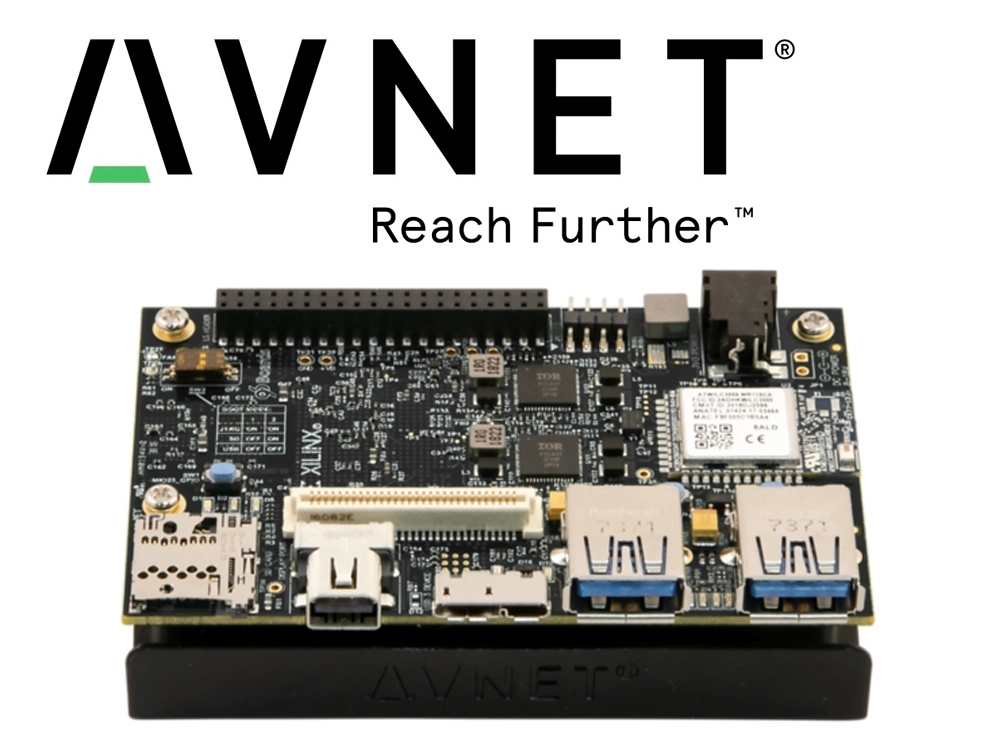

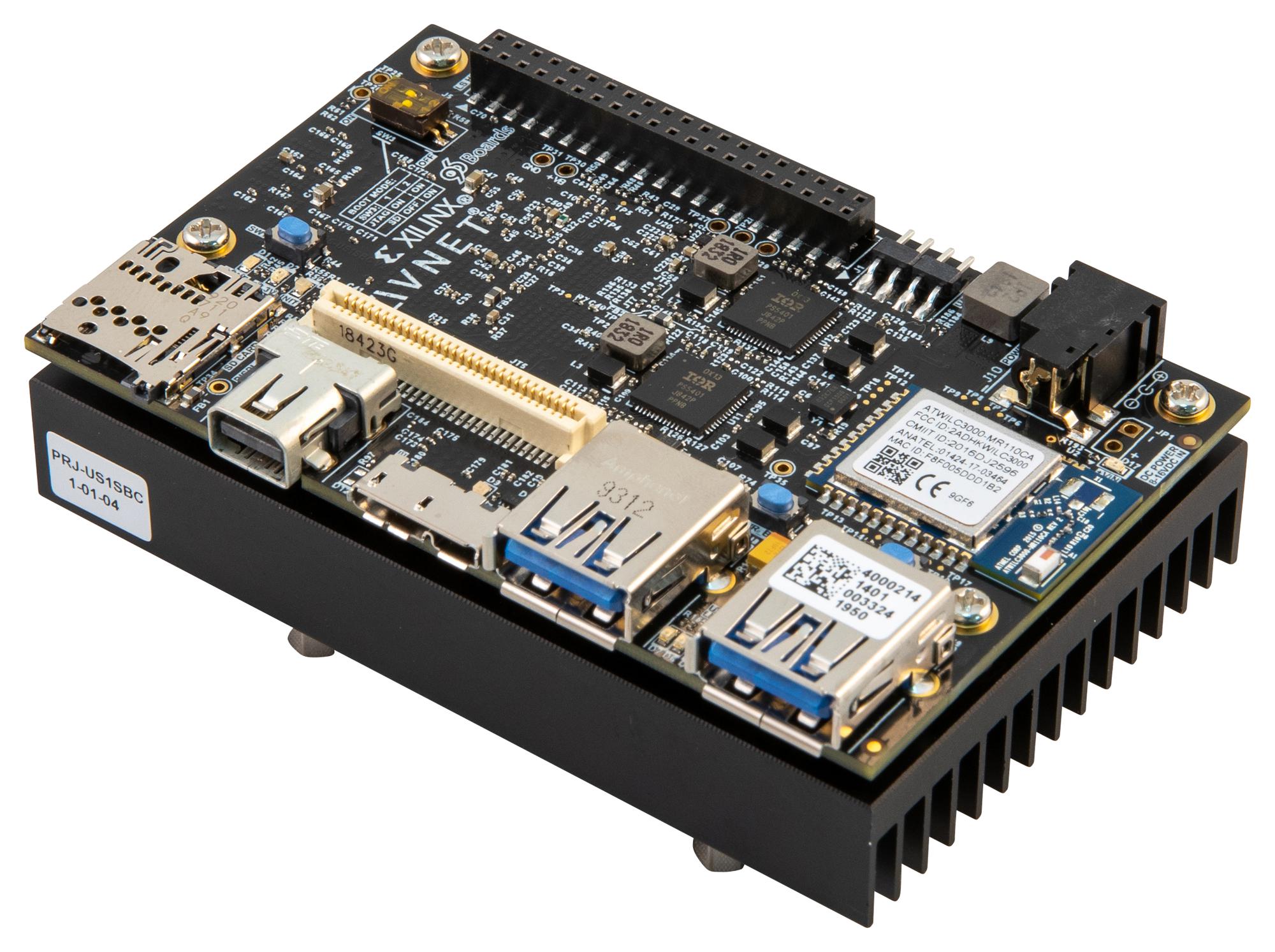

The Ultra96-V2 FPGA Board is an Arm-based, AMD Xilinx Zynq UltraScale+ ™ MPSoC development board based on the Linaro 96Boards Consumer Edition (CE) specification. The board is available in more countries around the world as it has been designed with a certified radio module from Microchip. Additionally, it is available in both commercial and industrial temperature grade options. Additional power control and monitoring is possible with the included Infineon Pmics. You can know details of Ultra96-V2 from this official link.
Like Ultra96, the Ultra96-V2 FPGA Board boots from a microSD card (not included). Engineers have options of connecting to the board through a Webserver using integrated wireless access point capability or to use the provided PetaLinux desktop environment which can be viewed on the integrated Mini DisplayPort video output. Multiple application examples and on-board development options are provided for Ultra96-V2 as examples.
Ultra96-V2 provides four user-controllable LEDs. Engineers may also interact with the board through the 96Boards-compatible low-speed and high-speed expansion connectors by adding peripheral accessories such as those included in the MikroE Click Mezzanine for 96Boards (available as an accessory).
Micron LPDDR4 memory provides 2 GB of RAM in a 512M x 32 configuration. Wireless options include 802.11b/g/n Wi-Fi and Bluetooth 5 Low Energy. The radio module is Agency Certified in over 75 countries. UARTs are accessible on a header as well as through the expansion connector. JTAG is available through a header. The convenient JTAG/UART Pod (available as an accessory) provides both JTAG and UART connections via USB. I2C is available through the expansion connector.
Two Microchip USB3320 USB 2.0 ULPI Transceivers and one Microchip USB5744 4-Port SS/HS USB Controller Hub enable multiple USB connections. Ultra96-V2 FPGA Board provides one upstream (device) and two downstream (host) USB 3.0 connections. A USB 2.0 downstream (host) interface is provided via the high-speed expansion.
An IDT VersaClock 6E clock generator provides timing for USB 3.0, USB 2.0, DisplayPort, and the AMD Xilinx MPSoC primary clock input.
The integrated Infineon programmable power regulators generate all on-board voltages from an external 12V supply (available as an accessory) as well as providing access to power telemetry through PMBus connectivity.
Additional Information of Ultra96-V2 FPGA Board
| Component | Description |
|---|---|
| SoC | Xilinx Zynq UltraScale+ MPSoC ZU3EG A484 |
| RAM | Micron 2 GB (512M x32) LPDDR4 Memory |
| Storage | Delkin 16 GB microSD card + adapter |
| Wireless | 802.11b/g/n Wi-Fi and Bluetooth ® wireless technology 4.2 (provides both Bluetooth Classic and Low Energy (BLE)) |
| USB | 1x USB 3.0 Type Micro-B upstream port 2x USB 3.0, 1x USB 2.0 Type A downstream ports |
| Display | Mini DisplayPort (MiniDP or mDP) |
| Expansion Interface | 40-pin 96Boards Low-speed expansion header 60-pin 96Boards High speed expansion header |
| LED | 4 x user-controllable LEDs |
| Power Source | 8V~18V@3A, Plug specification is inner diameter 1.7mm and outer diameter 4.8mm |
| OS Support | Linux |
| Size | 85mm x 54mm |
Target Applications of Ultra96-V2
- Artificial Intelligence
- Machine Learning
- IoT/Cloud connectivity for add-on sensors
- Embedded Computing
- Robotic
- Entry level Zynq UltraScale+ MPSoC development environment
- Training, prototyping and proof-of-concept demo platform
- Wireless design and demonstrations using Wi-Fi and Bluetooth
Kit Includes
- Ultra96-V2 development board
- 16 GB microSD card + adapter
- Voucher for SDSoC License from Xilinx
- Quick-start instruction card
Getting started guide: https://www.96boards.org/documentation/consumer/ultra96/ultra96-v2/getting-started/
We are providing this exclusive Ultra96-V2 FPGA board in Bangladesh at an affordable price.
