Digital Multimeter (Pocket Size)
6,000৳
Description

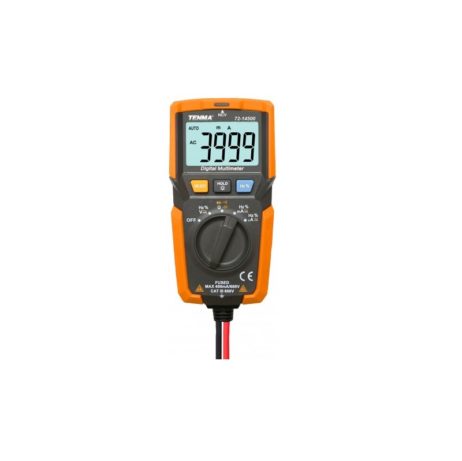

TENMA 72-14500 Digital Multimeter – Reliable, Accurate, and Built for Professionals
The TENMA 72-14500 is a high-performance true RMS digital multimeter designed to meet the demanding needs of engineers, technicians, and DIY electronics enthusiasts. Compact yet powerful, this multimeter offers exceptional precision and a wide range of measurement capabilities, making it a versatile tool for both field and lab use.
Key Features:
-
True RMS Accuracy – Ensures precise readings for both linear and non-linear loads, delivering reliable performance in every scenario.
-
Wide Measurement Range – Measures AC/DC voltage up to 1000V, AC/DC current, resistance, capacitance, frequency, temperature, and more.
-
High Safety Standards – Rated CAT III 1000V / CAT IV 600V, providing superior protection for users working in high-energy environments.
-
Large Backlit LCD Display – Bright and easy to read even in low-light conditions, with a bar graph for dynamic signal tracking.
-
Auto-Ranging Functionality – Automatically selects the correct measurement range for convenience and efficiency.
-
Data Hold & Min/Max Functions – Useful for capturing transient values and reviewing key data during diagnostics.
-
Built-In NCV (Non-Contact Voltage) Detection – Quickly identifies the presence of live voltage without direct contact.
Durability & Design:
Designed for rugged use, the TENMA 72-14500 comes with a protective rubber holster that helps absorb shock and resist impact. Its ergonomic build ensures a comfortable grip and one-handed operation in tight or awkward spaces.
Applications:
Whether you’re troubleshooting electrical circuits, testing industrial equipment, or working on automotive diagnostics, the TENMA 72-14500 is the reliable tool you need in your kit.
Features:
- 4000 Counts Display
- LCD Backlight
- Manual Function Select & Auto Ranging
- Diode Test & Continuity Buzzer
- NCV Detection
- Data Hold
- Duty Cycle: 20% ~ 80%
- Low Battery Indication
- Auto Power Off ( Turns Off after 30 minutes of no use)
- Input Impedance for DC Voltage: 10MΩ
Specifications:
| Function | Range / Accuracy |
|---|---|
| DC Voltage | 600mV to 1000V ±(0.5% + 3 digits) |
| AC Voltage (True RMS) | 6V to 1000V ±(0.8% + 5 digits) |
| DC Current | 600µA to 10A ±(1.0% + 3 digits) |
| AC Current (True RMS) | 600µA to 10A ±(1.5% + 5 digits) |
| Resistance | 600Ω to 60MΩ ±(0.8% + 2 digits) |
| Capacitance | 10nF to 100mF ±(3.5% + 5 digits) |
| Frequency | 10Hz to 10MHz ±(0.1% + 3 digits) |
| Temperature | -20°C to +1000°C ±(2.5% + 5 digits) |
| Diode Test | Yes (up to 3.0V) |
| Continuity | Yes (with buzzer <50Ω) |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Display Count | 6,000 |
| Power Supply | 2 x AA batteries |
| Dimensions | 190 x 90 x 50 mm |
| Weight | Approx. 400g (with batteries) |
Applications:
Perfect for:
-
Industrial maintenance
-
Electrical panel troubleshooting
-
HVAC work
-
Automotive diagnostics
-
General-purpose electronics
