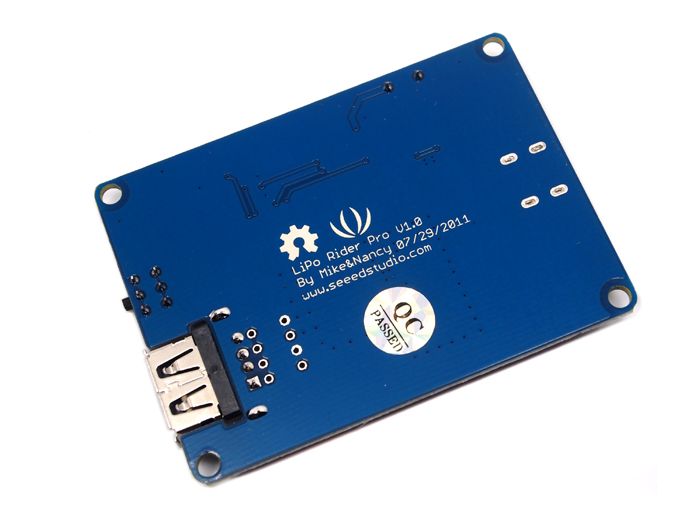

LiPo Rider Pro
Description
Power your favorite electronic kit with green energy! The LiPo Rider Pro is an enhancement of LiPo Rider. It can supply higher load output than LiPo Rider. The board allows you ride the solar wave to run your favorite 5V device. The LiPo Rider Pro board is the ideal green power solution for your outdoor sensor design. Attach the LiPo Rider Pro board to your sensor board and it can run on solar power forever! It can also be used to charge mobile phone.
The LiPo Rider Pro is extremely affordable and easy to use. No programming is required. Plug it in and it works. The internal charger IC handles all the power flow between the various components.
In case solar power is not sufficient, the mini USB port allows you to charge your lithium battery through USB. It can also be used to program your kit without detaching the LiPo Rider Pro board.
[Note] Now the Lipo Rider Plus is available, Lipo Rider Plus is simply a performance monster, supports up to 5V3A charging current, boost output integration, output up to 5V2.4A, can also output 3.3V 250mA.

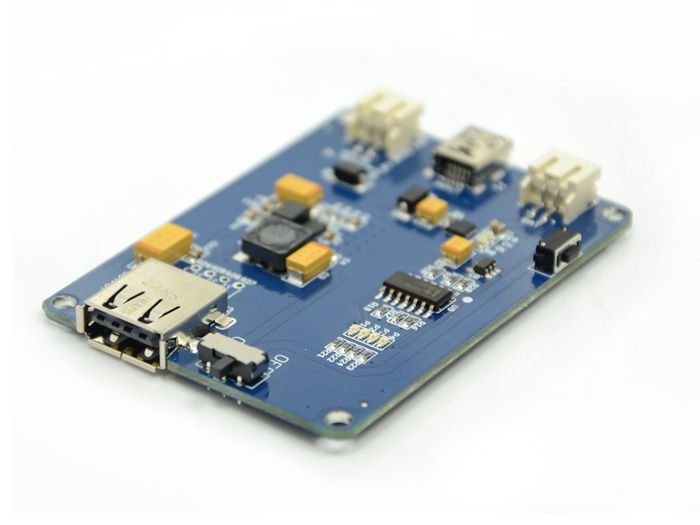

Features of LiPo Rider Pro
- Battery and Solar panel connector is JST 2.0
- Stable 5V USB power supply regardless of source
- Charge/Recharge algorithms built into chip
- Charge Lithium Polymer Battery through solar power or USB
- Stable supply voltage through either lithium battery or USB
- 2 x USB ports let you program your kit while charging your Lithium battery
- LED indications for battery full or charging states
- 4 green LED indicates quantity of electricity of lithium battery
Technical details
| Dimensions | 115mm x15mm x25mm |
| Weight | G.W 41g |
| Battery | Exclude |
| Solar input voltage | 4.8V~6.5V |
| Charging Current | 400mA~600mA |
| Maximum Output Current | 1A |
| Battery input voltage | 4.2V |
| USB input voltage | 5V |
| USB output voltage | 5V |

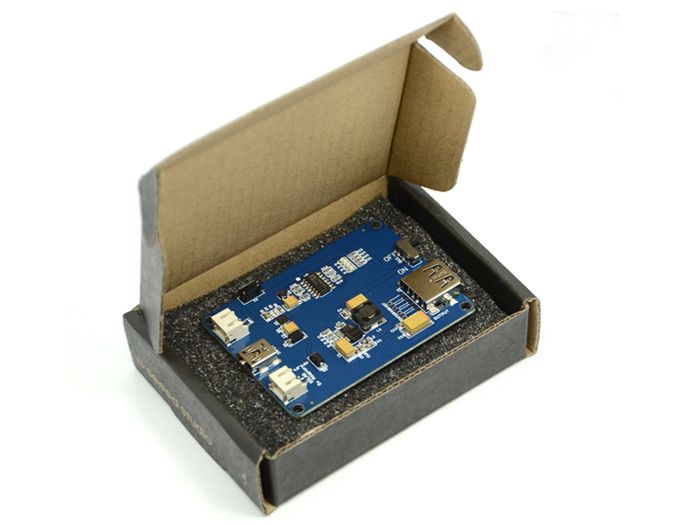

Part List
| LiPo Rider Pro | 1 |
ECCN/HTS
| HSCODE | 8504901900 |
| USHSCODE | 8525501000 |
| UPC | 841454106302 |
| EUHSCODE | 8517600000 |
| COO | CHINA |
LEARN AND DOCUMENTS
Documentations
Learn
Application Ideas
- Green Power and backup supply for distributed outdoor sensor network
- Charger for Lithium batteries
- Charger for mobile phone
- The LiPo Rider Pro has different connectors from LiPo Rider v1.0, the former is JST 2.0 and latter is JST 2.54.
- Live exposed electronic components.
- The board may get hot when supplying large loads.
- Potential short circuit or electric shock, especially if device gets wet when placed outdoors for solar power collection.
Dimensions of LiPo Rider Pro
The dimensions of the board is like the 6A Lithium Polymer Battery.
Specifications
| Items | Min | Norm | Max |
|---|---|---|---|
| Vin Solar | 4.8V | 5.0V | 6.5V(10s) |
| Icharge (RIset=3.9kΩ) | 400mA | 500mA | 600mA |
| Iload | 0mA | 1000mA | |
| Vbatt(Rx=0Ω) | 4.2V | ||
| Vsource USB | 5.0V | ||
| Vdestination USB | 5.0V | ||

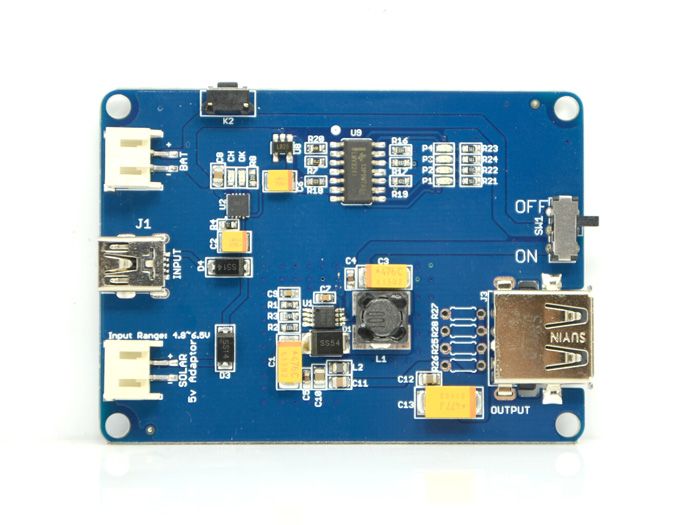

Pin definition and Rating
Pin Instruction and LED Statement
| CH pin level (Red LED state) | OK pin level (Green LED state) | Statements |
|---|---|---|
| Low level (ON) | High level (OFF) | Charging |
| High level (OFF) | Low level (last ON) | Complete |
| Pulse signal (Flash) | Pulse signal (ON) | The battery does not exist |
| High level (OFF) | High level (OFF) | Two situations:
|
LED Battery Indicator
The board has four LED battery indicators like the cell phone,and you can see the battery power by just pressing the button K2 like below:
LED battery indicator parameter
| Numbers of indicators lighting up | Amount of electricity |
|---|---|
| 4 | 90~100% |
| 3 | 60~90% |
| 2 | 30~60% |
| 1 | 10~30% |
| 0 | 0~10% |
Usage
Example
Outdoor Sensor Device Power Supply
One important application of the Lipo Rider board is as an affordable power supply for outdoor sensors. The outdoor sensor device will be powered by the lithium battery supplemented by the solar panel. Please note that it is not recommended to run the outdoor sensor ONLY on solar power, as this may vary during the day and may cause the sensor to reset / power down unexpectedly. In this case, the device is running in “USB Mode”.
If a firmware reprogram for the outdoor sensor device is required, simple connect the mini USB port to your PC which will put the device under “Program Mode” as explained above.
Larger/multiple batteries and/or solar panels can be used, but only with end-user modifications.
Charge Lithium Polymer Battery through solar power using LiPo Rider Pro
